Arranging furniture in a 16 foot by 20 foot Living Room with Four points of Entry

Arranging furniture Eight different ways in a 16 foot wide by 20 foot long Living Room.

Recently one of my readers typed a note in the comments, asking for my help with her decorating dilemma. Summer R. has a 16 foot by 20 foot living room with four points of entry, and a fireplace built into one of the corners of the room and she is having a hard time arranging furniture in the space.

I asked Summer to measure each wall starting at the left corner, working to the right side of that wall. I instructed her to write down the distance from the corner of the room to the first window ( if that was what it was), the length of that window, the amount of inches of space after that window to any door in the room, its width, and the amount of inches from the door (it here was one on that wall) to the right corner of the room. I told her to do that for each wall, and make sure she labeled the walls for north, south, east and west; so I would know which walls were which when making a scaled drawing of her space.

I then asked her to take measurements of any furniture she had, for depth and length, that she would be working with in the space.  Summer supplied them and asked for suggestions for anything else that could be added, to make for an interesting and comfortable arrangement of furniture.   Now let’s look at the eight different ways of arranging her furniture that I came up with.

Summer’s list of living room furniture to work with are…
One sofa 40″ deep x 100″ long (3’4″ by 8’4″),
One loveseat 40″ deep by 72″ long (3’4″ by 6′)
One ottoman 36″x36′ square,
Two end-tables 24″x24″.
To Summer’s furniture I am suggesting the addition of…
upholstered club chairs, wing chairs and occasional chairs 36″x36″ max, but preferably a few inches less in both directions,
an upholstered bench 20″ x 52/54″ wide,
a small upholstered bench 18″x24″,
a coffee table 2’x3′,
side chairs (SC)(arm-less dining room table chairs) 25″x25″, and
floor lamps for added illumination.
.

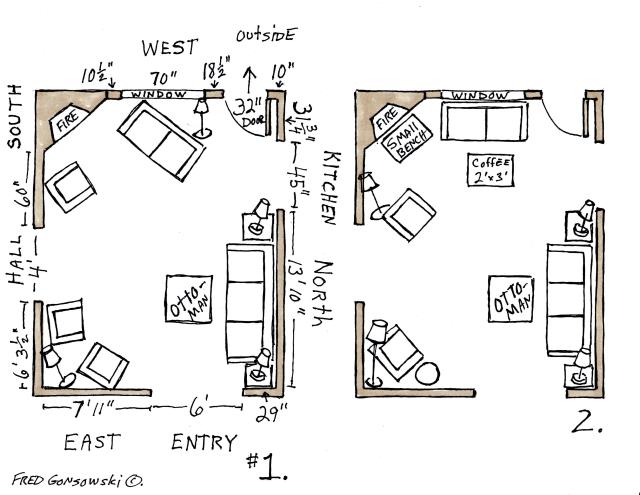

Illustration #1 shows the layout of the room with the measurements provided by Summer. Notice the labeling of the four walls (north, south, east and west), and where the points of entry come from when entering the room. Also look at the  placement of  the fireplace which is 65 inches wide and is seen on the south-west corner of the room.

Looking at illustrations # 1 and #2  you will see that the only long wall in the room where a sofa and two end tables could be placed is on the north wall; that wall has 13 feet  10 inches of running wall space.   Working with the sofa and end-tables placed up against that wall, there really is no real room for the loveseat or other chairs to be placed by the sofa to form a conversation area.  Any extra furniture would block one of the entrances into the room.  In this instance,  with the sofa placed as it is, all the rest of the furniture in illustrations #1 and #2 has been placed “Ball Room” style, which means that the chairs and loveseat are also placed along the walls of the room, not in the center.

In illustration #1 I tried to position the loveseat and a chair by the fireplace, to form a seating area.  I also put a floor lamp behind the loveseat to provide lighting at that end of the room if needed.

In Illustration #2 the loveseat has been moved up in front of the window and a small coffee table was placed in front of it.  A Small upholstered  bench 18″x24″ was added in front of the fireplace for extra seating, and that bench could be moved around the room as needed.  The floor lamp in illustration #2  has also been moved behind the chair by the fireplace, that chair has been re-positioned to now face toward the sofa.

Looking at the  bottom (south-east) corner of the room in illustration #1,  notice that two chairs have been placed next to each other to make a grouping  that kind of faces the sofa, and a floor lamp was put behind them to light that corner of the room.

At the bottom of illustration #2 a floor lamp, one upholstered chair and a small round end table fill in that space.

If a TV was going to be placed in this living room, I would suggest hanging it on either side of the entrance to the hall, which is on the south wall of the room.

Please note… Because of the size of the living room, with its four points of entry, the fireplace could really not be addressed as the main focal point of the space.  When coming up with different furniture arrangements for this living room, I looked at the fireplace as a secondary element in the space, thinking of it as just part of the background.  My main objective was to make groupings of furniture that would promote togetherness and conversation.

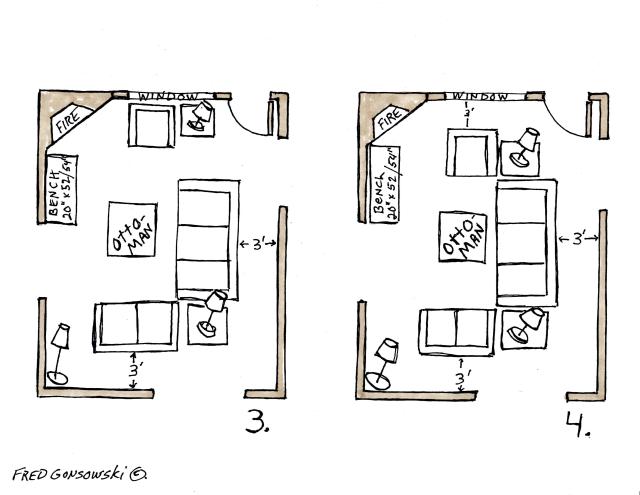

Illustrations #3 and #4 show how furniture is much more easily grouped in the space, when it is floating in the center of room.

Looking at Illustration #3 notice how the three cushion sofa and the two cushion loveseat are floating out from the north and east walls of the room about 3 feet.  One of Summer’s end tables has been placed between them.   At the top of the room (west wall) by the window an upholstered chair and the second of Summer’s end tables are placed.  For added seating in the room, an upholstered bench 20″x 52 to 54″ is placed by the fireplace.  That bench could easily be moved up closer to the ottoman for extra group seating by the sofa when needed.  A floor lamp was added to the bottom left corner of the room for extra illumination.

Illustration #4 is very similar to illustration #3, but now the upholstered chair and end table are pulled up closer to the sofa.

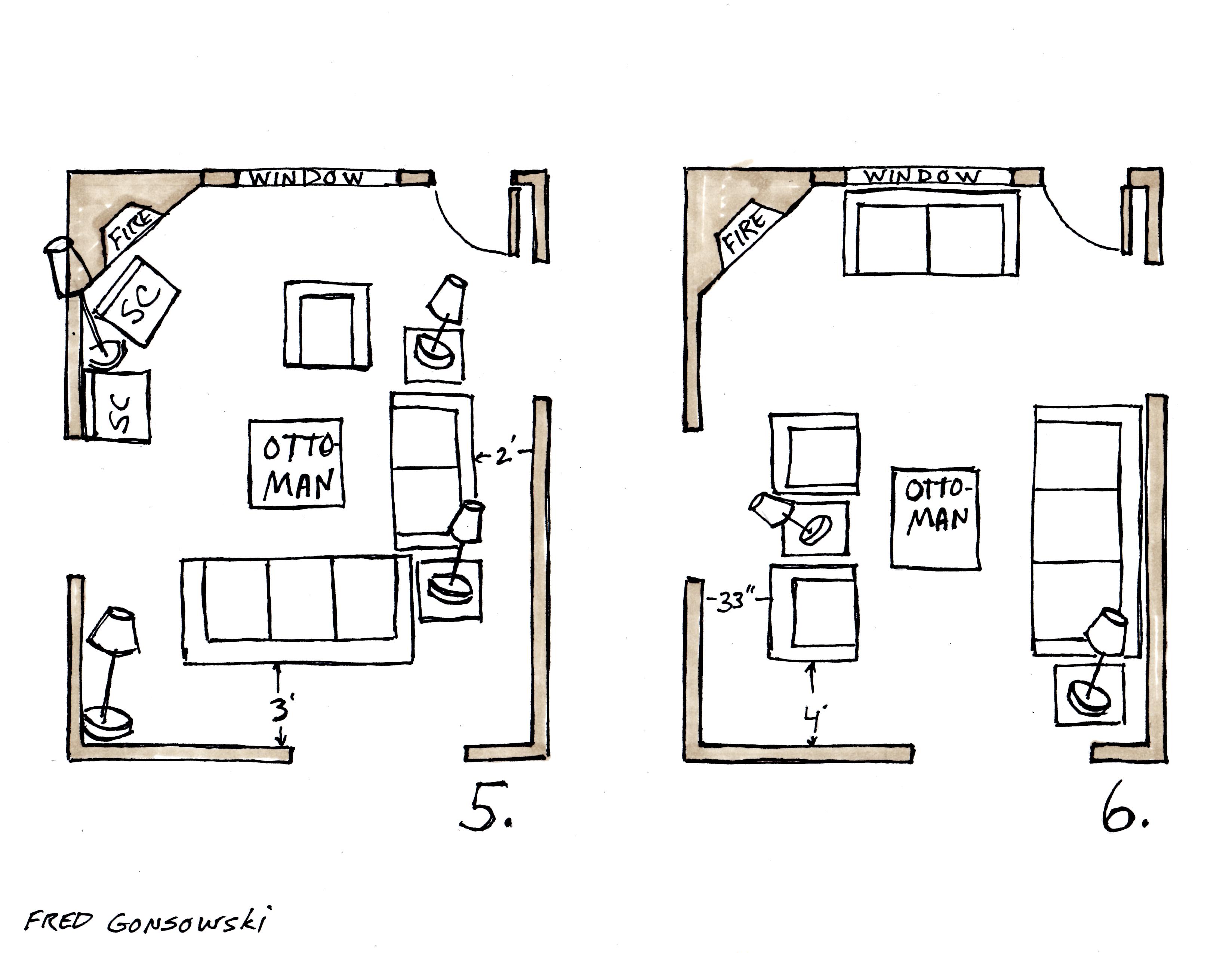

Illustration #5 shows the three cushion sofa floating out from the east wall about 3 feet and the loveseat is floating out from the north wall about 2 feet. The loveseat is flanked on each side by the two end-tables with lamps. On the south wall of the room, by the fireplace, are a pair of side chairs (sc) which are like arm-less dining room chairs, with a floor lamp between them. Those two side chairs could be moved up closer to the sofa, loveseat and ottoman when necessary to make a larger conversation grouping.  A second floor lamp is seen in the left bottom corner of the room for extra illumination.

Illustration 6 has the three cushion sofa, again on the north wall, but this time it is placed close to the opening to the kitchen and is flanked on one side by an end-table with lamp. Opposite the sofa are a pair of upholstered chairs, with the second end-table with lamp between them. The loveseat is at the top of the room by the window.

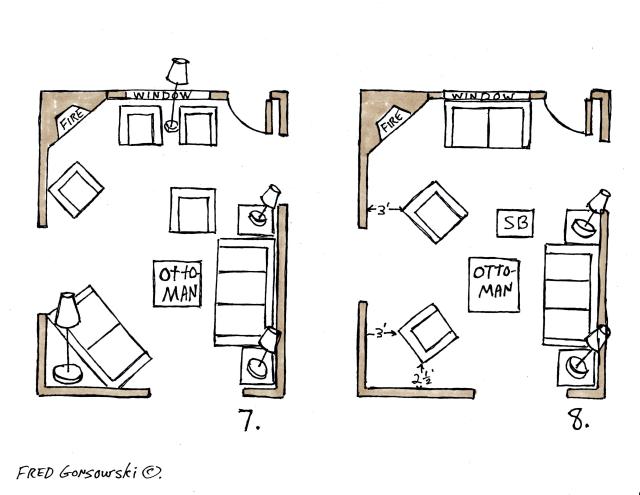

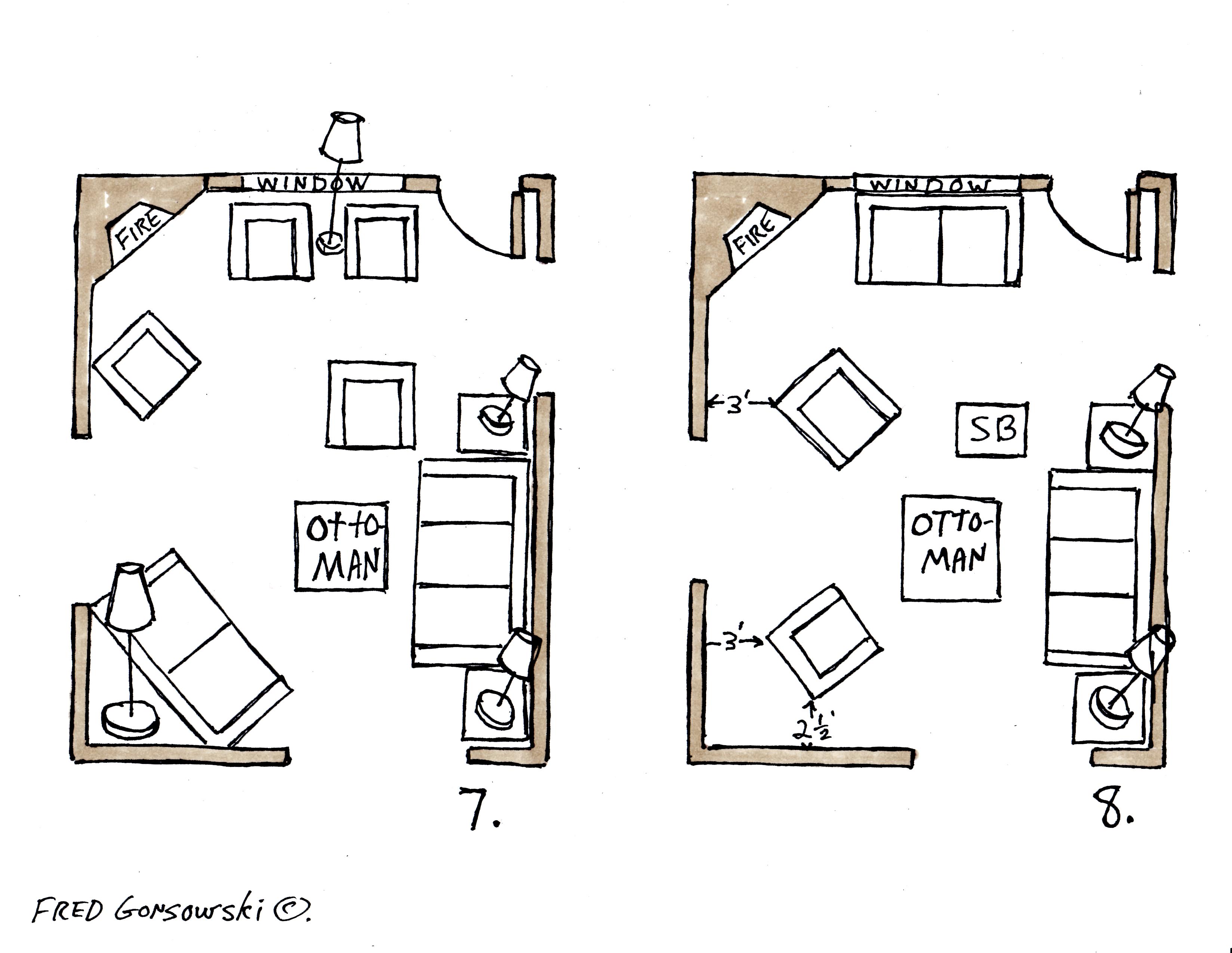

Illustrations #7 and #8 have the sofa placed against the north wall again.

In illustration #7 notice how an upholstered chair is placed close to the sofa, by the ottoman. Next look at how the loveseat is angled in the south-east corner of the room, and it has a floor lamp placed behind it to illuminate that side of the room.

After that look at the single upholstered chair by the fireplace. Notice that it is facing toward the sofa area, and its angled like the loveseat toward the sofa. Finally look at how two more upholstered chairs are up by the window at the top of the room with a floor lamp between them.

Illustration #8 shows the sofa with two upholstered chairs placed on an angle opposite it. The chairs are about 3 feet from the south wall and one of the chairs if 2 1/2 feet from the east wall. Also notice how the small 18″x24″ upholstered bench (sb) has been added for extra seating.

The number one thing that I got out of doing this project for Summer, and that I want to pass on to you is….
If you are looking for furniture for a smaller sized room, and that room has many openings going into it, those openings take up a lot of valuable wall space where furniture could be placed. If you are in the market for new furniture look for sofas, loveseats and chairs that have a full-sized seating area, but don’t have a lot of extra padding, or arms that are over stuffed or flair way out. Also don’t buy furniture that is too deep, as even 4 extra inches of furniture size quickly eat up valuable space in a room.  When buying upholstered chairs for a room like this, think about having a couple that swivel.  Chairs that face a sofa, can easily be swiveled in the opposite direction to watch a TV on an opposite wall.

Summer’s sofa is three feet four inches deep by eight feet four inches long. I think she could have gotten a comfortable sofa three-foot deep by seven feet long and would have been able to seat the same amount of people on it. That smaller sized sofa would fit more comfortably in the space, and possibly make laying out furniture a bit easier.

Before buying any kind of furniture, be it living room, dining room, bedroom, etc. ask the furniture store for the dimensions of the furniture ( depth, length and height) that you are thinking of purchasing. Go home and take newspapers and tape them together to make templates the size of the furniture you are possibly getting. Lay those templates on the floor in the space where you think the furniture will go. In one second you will know if the piece(s) you are thinking about buying is/are just right for the space or too big.

So there you have it, eight possible ways of arranging furniture in a 16 foot by 20 foot space. I hope this post was inspiring.

If you are having a problem with laying out your furniture as Summer did, type me a note in the comments.  Measure your room like Summer did and make a list of the furniture you have with its dimensions.  I’m not promising anything, but your inquiry could be turned into an upcoming blog post.
